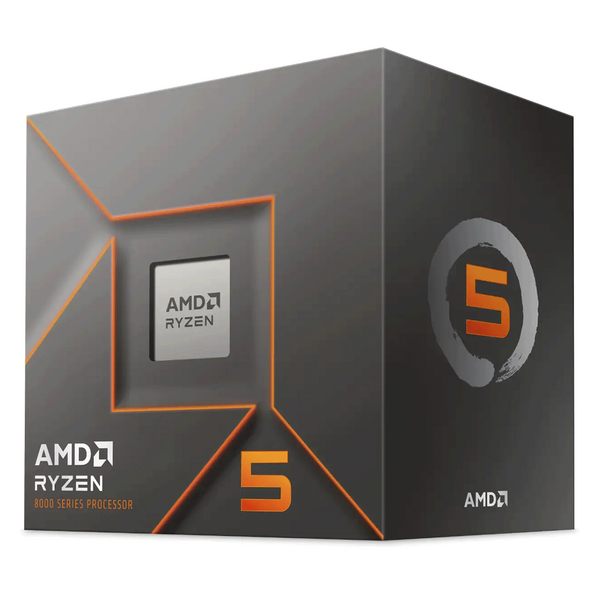

AMD Ryzen 5 8400F with Wraith Stealth Cooler, AM5, Up to 4.7GHz, 6-Core, 65W, 22MB Cache, 4nm, 8th Gen, No Graphics

Description

Features
Brand AMD
Model Number 100-100001591BOX
CPU Series Ryzen 8000 Series
CPU Range AMD Ryzen 5
CPU Model 8400F
Number of Cores 6
Number of Threads 12
CPU Base Clock 4.2GHz
CPU Boost Clock 4.7GHz
Cache 22MB
Socket Type AM5

General Specifications
Platform: Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 5 Desktop Processors
AMD PRO Technologies: No
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 4.7GHz
Base Clock: 4.2GHz
L2 Cache: 6MB
L3 Cache: 16MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions:
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax): 95°C
OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit

Connectivity
Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe 4.0
Native PCIe® Lanes (Total/Usable): 20 / 16
NVMe Support: Boot, RAID0, RAID1
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 256GB
System Memory Subtype: UDIMM
Max Memory Speed:
2x1R - DDDR5-5200
2x2R - DDR5-5200
4x1R - DDR5-3600
4x2R - DDR5-3600
ECC Support: No

Graphics Capabilities
Integrated Graphics: No
Graphics Model: Discrete Graphics Card Required
