Description

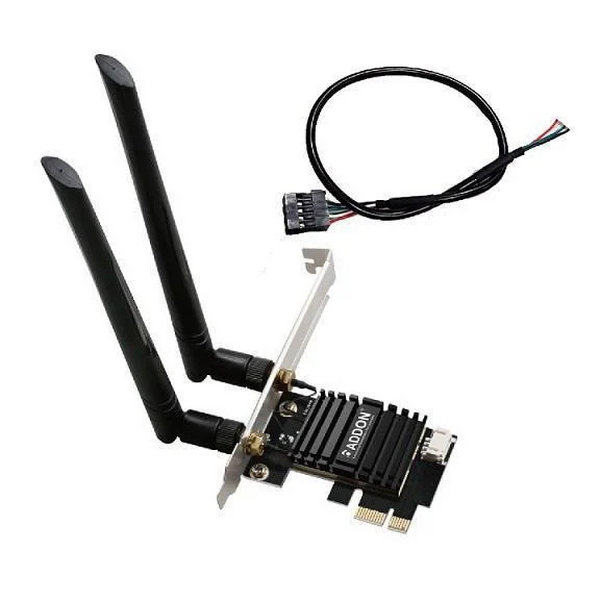

WIFI 6 11AX BLUETOOTH 5 MU-MIMO DUAL BAND PCI-E ADAPTER XWP3000R
ADDON ADD-XWP3000R is a highly integrated wifi 6 Dual-Band PCI-e adapter for desk top motherboard with up to 2400Mbps at 5GHz (160MHz) and 573Mbps at 2.4GHz. With Intel AX200 solution, it supports MU-MIMO, OFDMA, 2x2 TX/RX channels with two wifi 5dBi antennas & Bluetooth 5.0 connection. With 1024-QAM, it gives more throughput (Up to 2.5 times than 11AC/wifi 5 and Up to 10 times than 11N/wifi 4) than previous generations and is backwards compatible with wifi 11AC/N/G/B/A and Bluetooth 4.2 & 4.0. More benefits of using Wi-Fi 6 technology include: Giving lower latency, improved power efficiency and more deliverable data simultaneously; implementing target wake time (TWT) to reduce power consumption.
Model number: ADD-XWP3000R
Chipset:INTEL AX200
Standard: IEEE802.11.ax, IEEE802.11.ac, IEEE802.11.n,IEEE802.11.b, IEEE802.11.g, IEEE802.11.a
Data rate: 574Mbps under 2.4G; 2400Mbps under 5GHz( 160MHz)
Interface: PCI Express 1x slot and USB
BT: 5.0
Antenna: 2*5dBi detached antenna
Dimension: 71.5mm x 58mm x 1.6mm
Support OS: Windows®10(32/64): Mac OS® 10.x (Intel based, tested up to 10.9): Linux 2.4.x and later (Tested up to 3.5)
