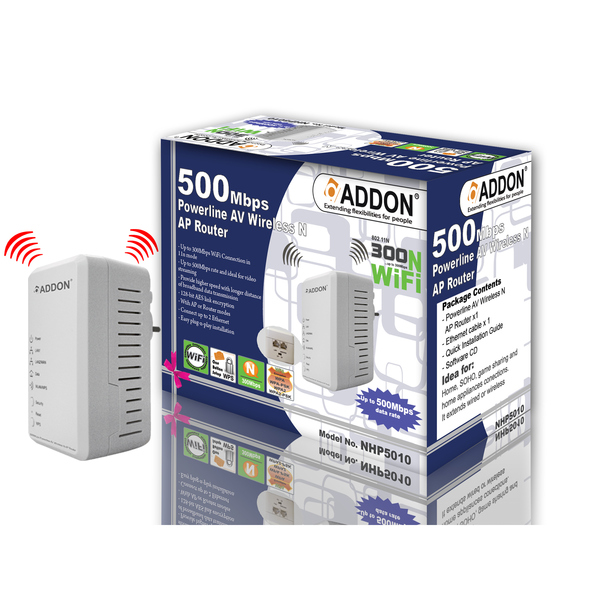

ADDON 500Mbps Power Line AV Wireless AP Router

Description

500Mbps Homeplug with wireless n adapter is an 802.11n Extender for transmitting data up to 500 Mbps across the power line, and for wireless the transmitting rate can be up to 300 Mbps. Also 500Mbps HomePlug can provide higher speed with longer distance of the transmission of broadband data service. The advantages to enable customers online and more convenience with better connectivity and suitable for use in both residential (in-home) and commercial (offices, apartments, hotels, and warehouses) network applications.

PHY Rate 500Mbps
Frequency Band 2-68 MHz (With Mask)
Access Methods TDMA and priority-based CSMA/CA channel access
QOS 4 Levels priority based contention access and multi segment
8-levels VLAN priority field, TOS Field
QoS Classification by destination MAC address and IP Port


Modulation OFDM (QAM 8/16/64/256/1024, QPSK, BPSK, ROBO)
Nodes Up to 15 slaves with 1 master, 16 total devices
Max 8 bridged devices per station

IGMP Support for IPv4/IGMPv1,v2,v3 snooping
Support for IPv6 and MLDv1,v2 snooping
Max 16 source addresses and Group Members


Encryption 128-bit AES Link Encryption with key management
Standards IEEE 802.3, IEEE 802.3U
IEEE1901 and HomePlug AC compliant

Port One 10/100M WAN port
Power Source 100-240 VAC, 50/60 Hz
WiFi Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Security WEP/WPA/WPA2,WPA-PSK/WPA2-PSK
WIFI Frequency Range 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)


WIFI Receive Sensitivity 270M: -68dBm@10%PER
130M: -68dBm@10%PER
108M: -68dBm@10%PER
54M: -68dBm@10%PER
11M: -85dBm@8%PER
6M: -88dBm@10%PER
1M: -90dBm@8%PER






Antenna 2*2dBi Antenna
