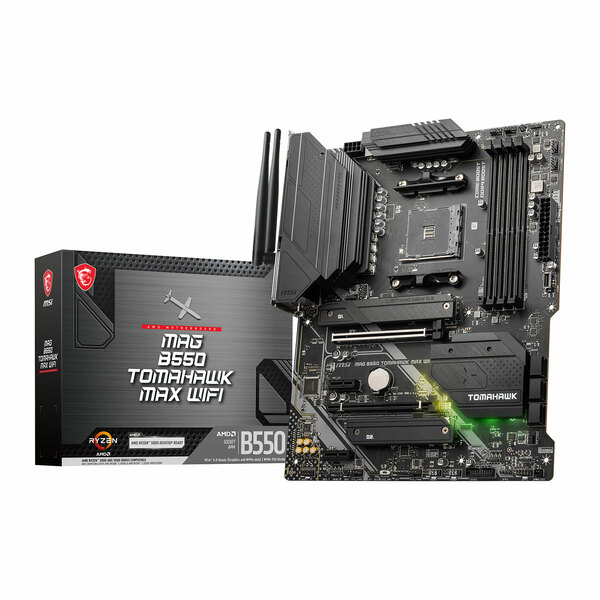

MSI MAG B550 TOMAHAWK WIFI AMD Socket AM4 Motherboard

Description

MSI MAG B550 TOMAHAWK MAX WIFI ATX Motherboard

Features

•  Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
•  Supports DDR4 Memory, up to 5100+(OC) MHz
•  Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
•  Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
•  Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
•  2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
•  Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
•  Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.


Technical Specification
MSI MAG B550 TOMAHAWK MAX WIFI ATX Motherboard
General
Product Type     Motherboard - ATX
Chipset Type     AMD B550
Processor Socket     Socket AM4
Max Processors Qty     1
Compatible Processors     Ryzen (supports 3rd Generation Ryzen)
Supported RAM
Max Size     128 GB
Technology     DDR4
Bus Clock     2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check     Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered     Unbuffered
Features     Dual channel memory architecture, supported ECC modules operate in non-ECC mode
Audio
Type     HD Audio (8-channel)
Audio Codec     Realtek ALC897
Compliant Standards     High Definition Audio
LAN
Network Controller     Realtek RTL8125B
Network Interfaces     2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots     1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1
Storage Interfaces     SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces     1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort
Internal Interfaces     4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
Power Connectors     24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Features     MSI ClickBIOS 5
Hardware Features     AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot
Miscellaneous
Included Accessories     Case badge, Wi-Fi aerial
Cables Included     2 x Serial ATA cable
Software Included     Drivers & Utilities
Width     30.5 cm
Depth     24.4 cm
