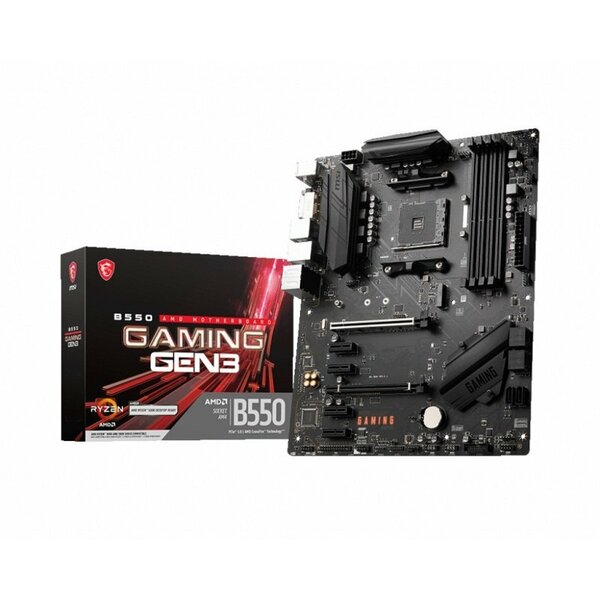

MSI B550 GAMING GEN3 AMD Socket AM4 Motherboard

Description

MSI B550 GAMING GEN3 ATX Motherboard

Features
•    Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
•    Supports DDR4 Memory, up to 4400(OC) MHz
•    Lightning Fast Game experience: Turbo M.2 Gen3 x4, AMD Turbo USB 3.2 GEN 2
•    Enhanced Power Design: Core Boost, DDR4 Boost
•    MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports AMD Crossfire™
•    Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
•    Audio Boost: Reward your ears with studio grade sound quality

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.


Technical Specification
MSI B550 GAMING GEN3 ATX Motherboard
General
Product Type     Motherboard - ATX
Chipset Type     AMD B550 / Nuvoton NCT6797
Processor Socket     Socket AM4
Max Processors Qty     1
Compatible Processors     Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM
Max Size     128 GB
Technology     DDR4
Bus Clock     2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Supported RAM Integrity Check     Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered     Unbuffered
Features     Dual channel memory architecture, A-XMP support
Audio
Type     HD Audio (8-channel)
Audio Codec     Realtek ALC897
Compliant Standards     High Definition Audio
LAN
Network Controller     Realtek RTL8111H
Network Interfaces     Gigabit Ethernet
Expansion / Connectivity
Expansion Slots     1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x PCIe 2.0 x1 ¦ 1 x M.2 socket (2260/2280/22110 M.2 Key M slot)
Storage Interfaces     SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces     1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DVI-D
Internal Interfaces     4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x parallel - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors     24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type     AMI
BIOS Features     Multilingual BIOS, UEFI BIOS, SMBIOS 2.8 support, ACPI 6.1 support
Hardware Monitoring     CPU core temperature, chassis temperature, fan control
Hardware Features     MSI Audio Boost, Debug LED, Turbo M.2, MSI Steel Armor, Water Pump Header, MSI Core Boost, DIY Friendly Design, MSI Mystic Light Sync, MSI Memory Boost, flash BIOS button
Miscellaneous
Included Accessories     Case badge, I/O back cover
Cables Included     2 x Serial ATA cable
Software Included     Norton Internet Security, Google Chrome Browser, Google ChromeToolbar, MSI CPU-Z, Google Drive, MSI Center
Compliant Standards     RoHS, WEEE, FCC Part 15 Class B
Width     30.5 cm
Depth     24.4 cm
