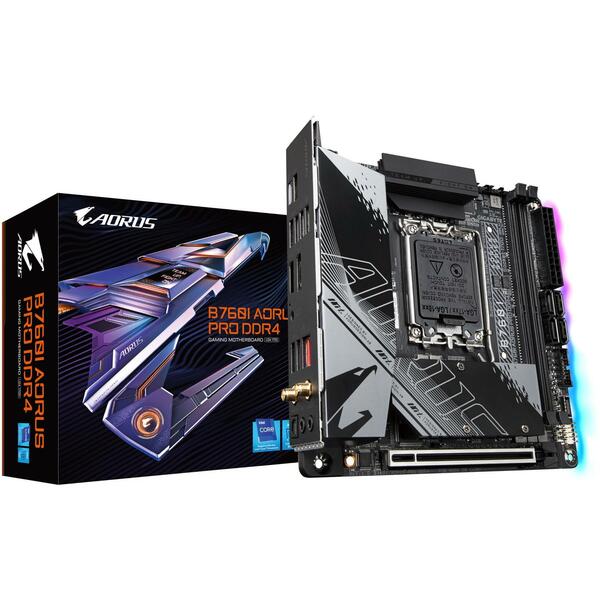

GIGABYTE ITX Motherboard - LGA 1700

Description

SPECIFICATION:
CPU Supports 12th/13th Gen Intel Core Processors Pentium Gold and Celeron Processors
Chipset Intel B760
Memory 2x DDR4 memory slots, supports up to 64GB at 3200Mhz upto 5333MHz (OC)
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs 1 x HDMI port
1 x DP
PCI Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Storage Total supports 2x M.2 slots and 4 x SATA 6Gb/s ports
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Networking 1x Intel 2.5Gbps LAN controller
Audio 7.1 HD Audio with Audio Boost
Connectivity 1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Internal Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
1 x chassis intrusion header
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
Warranty Three Year Manufacturer Warranty
